PRODUCTS > PASSIVE PRODUCTS > Outside Plant Fiber Closures > OPTICONN TM 750 Dome Fiber Closure
OPTICONN TM 750 Dome Fiber Closure

DOWNLOAD

Product Details
  • Product Features
    Up to 6 Cable Entry Points, each port capable of 1-4 cables
    Gel Seal Designed for 0.23" to 0.9" of fiber cable diameters
    Optional Short Tray(s): up to 72 Single Splices per Tray
    Optional Tall Tray(s): up to 72 Single or 288~432 Ribbon Splices per Tray
    Up to 3 Mid-Span Cable Capacity
    Flexible Hinge Design for Mix Use of Short and Tall Trays
    Additional Flex Fiber Slack Basket for increased storage capacity
    Strand & Pole Mounting Bracket Options
  • Applications
    PON
    DAA
    Outdoor Fiber Optic Cable Splicing and Cable Management
    Aerial, Underground, or Direct Bury
    Mid-span Cable and Cut-end Cable Entry
    Single Fusion and Mass Fusion (Ribbon) Fiber Splicing
    Cable Purpose(s): Back-bone, Lateral, and Drop
    Cable Type(s): Armored, ADSS, Loose Tube, Ribbon, Micro Cable, Flat or Round Drop Cable
    Optical Splitters and/or Multiplexers Integration
  • Standards
    IP68
    GR771
    RoHS

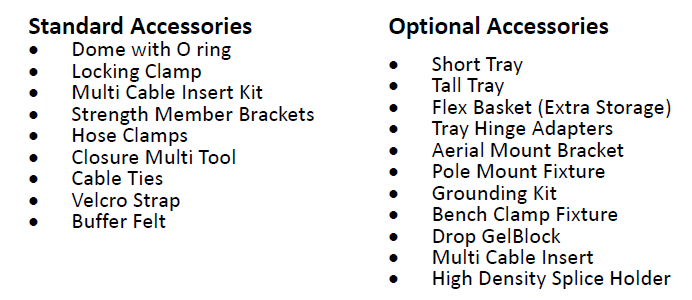

  • Accessories


  • GelBlock

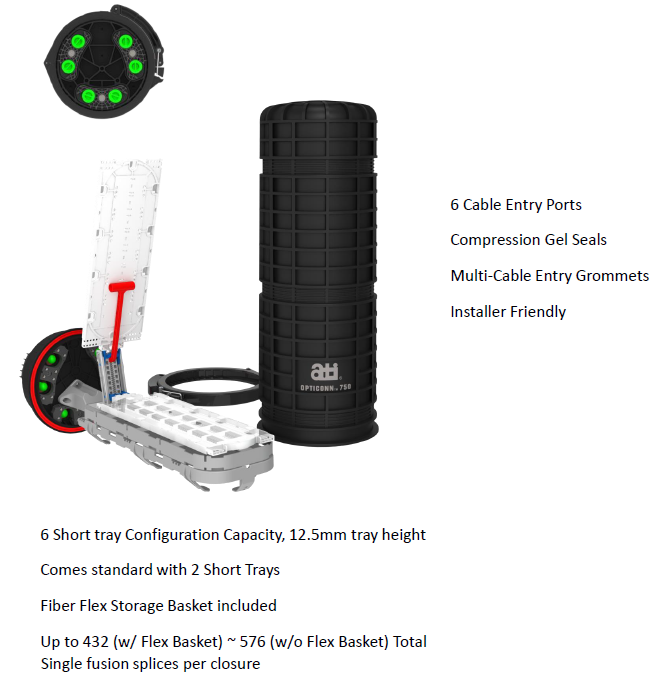

  • Part Number: OC750-OG01-F1T2S0-V1G0

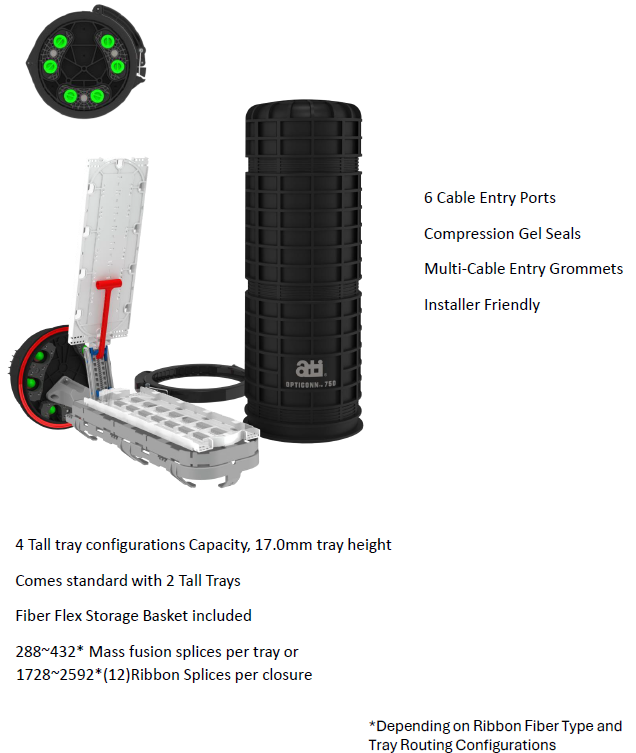

  • Part Number: OC750-OG01-F1T0S2-V1G0

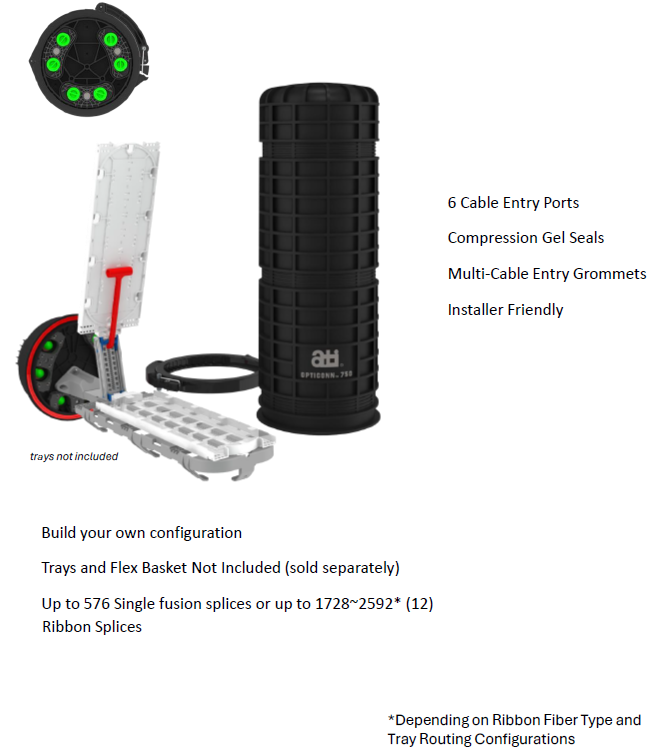

  • Part Number: OC750-OG01-F0T0S0-V1G0

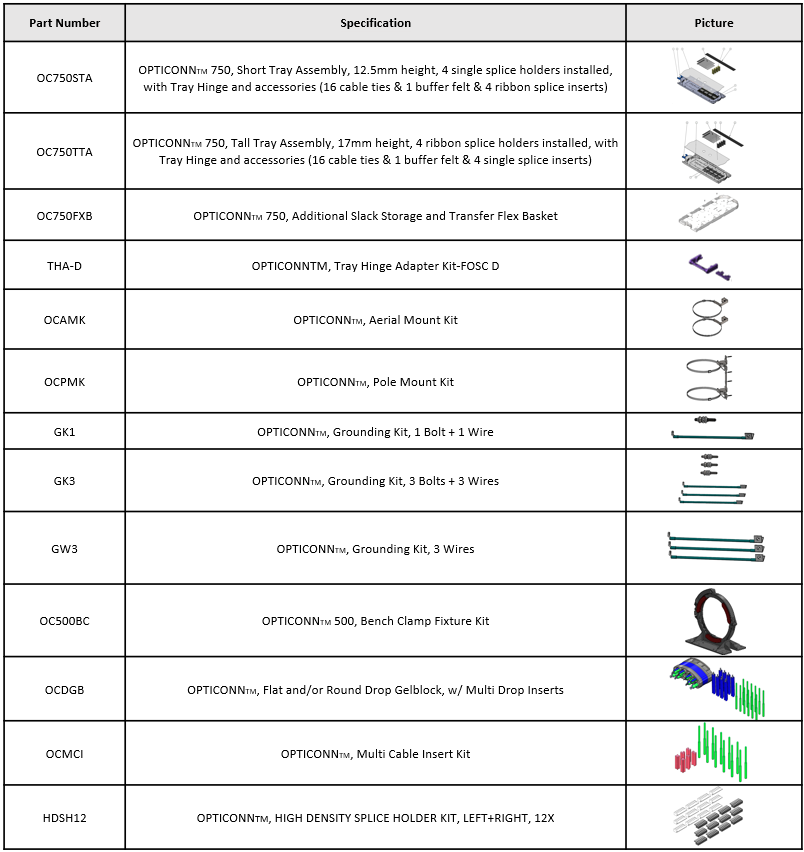

  • Optional Accessories

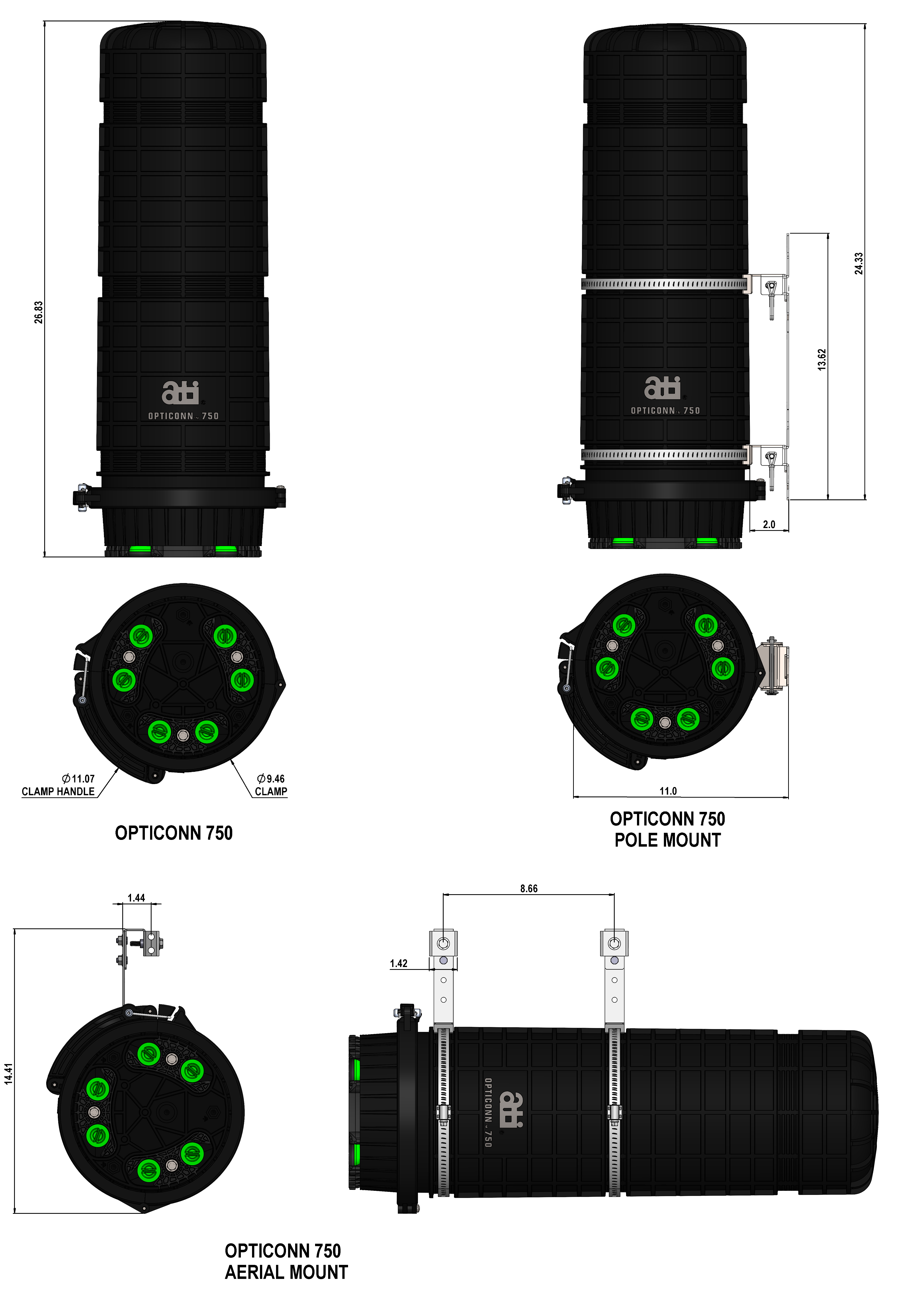

  • ASSEMBLY(INCH):


Related Products
OPTICONN TM 250 Dome Fiber Closure
OPTICONN TM 500 Dome Fiber Closure
Opticonn Outdoor Splice Closure
